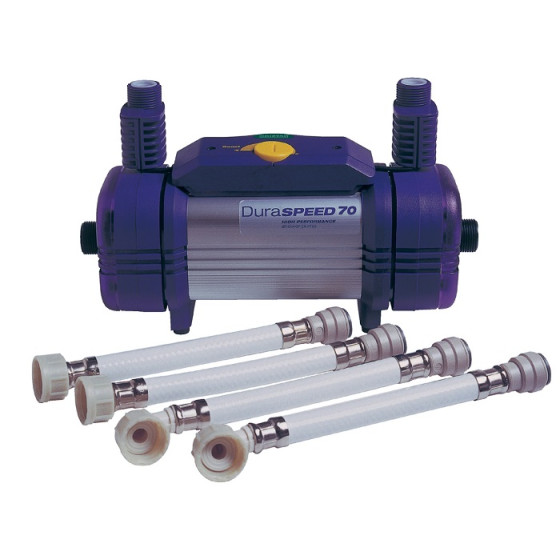

Bristan Duraspeed Shower Booster Pump 70

Variable speed twin impeller pump driving both hot and cold supplies to boost shower power up to 20 times.
Pump rated at 2.0 bar pressure equivalent to 20 metres (70’ head).
Vibration free and gives noise reduction of up to 30% over similar pumps.
Pump supplied with 15mm push fit inlet and outlet connections.
Inlet connection washers with integral filters.
Minimum 115 litres (25 gallon) cold water tank capacity recommended.
Pump requires 230 Volt AC supply fused at 3 amps via a double pole isolator with contact gap of at least 3mm.
Pump fitted with mains supply cable.
Power consumption – 280 W (fuse rating – 3 A).
Pump must be protected by a 30ma RCD (Residual Current Device).
For optimum performance pump should have dedicated hot and cold water supplies direct from cold water tank
 and hot water cylinder (preferably using an Essex flange on hot cylinder).
Under no circumstances should the pump be connected to mains water supply.
